ARP SPOOFING - Man in the middle - Part 1

ARP (Address Resolution Protocol) is a communication protocol used for discovering the link layer address. Such as MAC address associated with a given layer address.Using this protocol we can act as a man in the middle.

By Typing arp -a you get the ARP table of your windows machine.

Here By using arpspoofing we change the mac address of the Router into our kali machine mac address.

This is the IP and Mac address of the Router.

Now go to the kali machine which is connected in the same network.

IP of our Target is 192.168.1.48 So type the following command in your kali terminal

arpspoof -i eth0 -t 192.168.0.48 192.168.0.1

Open another terminal and Run the following command also.

arpspoof -i eth0 -t 192.168.0.1 192.168.0.48

Now we are in the middle of the connection between windows machine and the router.

check arp table in windows machine by typing arp -a

Here you can see the change that our Router mac is changed to the mac address of our kali machine.

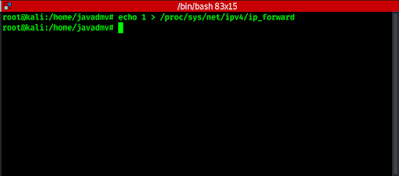

But we still have a problem that is our kali machine is now acting as a router so it need to activate port forwarding to allow the packets come and go through it. For that type the following command in the kali machine.

echo 1 > /proc/sys/net/ipv4/ip_forward

Now all the packets sending and receiving by the target is captured by our kali machine.

We can get the usernames and passwords typing by the victim using this trick I will explain it in my next post. Stay tuned.....
